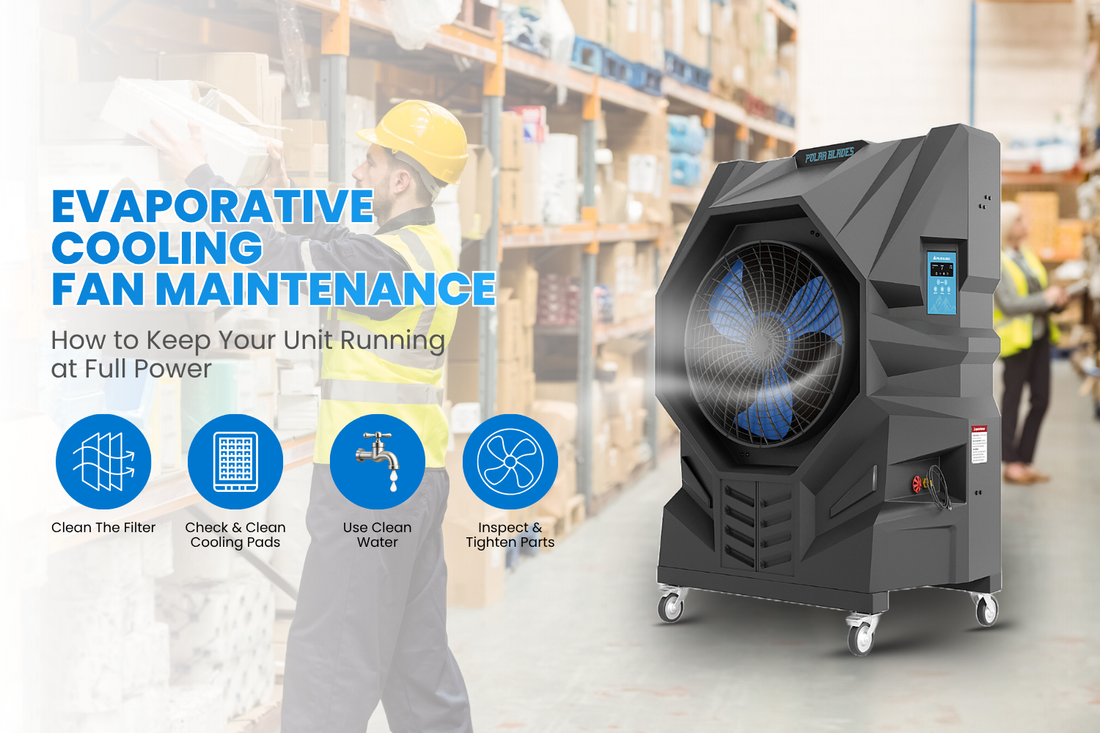

An evaporative cooling fan is one of the most straightforward pieces of industrial equipment you'll own — but like anything that works hard in tough environments, it rewards regular attention. Neglect the basics, and performance drops quietly over time. Stay on top of maintenance, and your unit can run reliably for years.
This guide walks through everything you need to know to keep your evaporative cooler delivering maximum airflow and cooling efficiency, season after season.
Why Maintenance Matters More Than You Might Think
The cooling efficiency of an evaporative fan is directly tied to the condition of its cooling pads. As water cycles through the system, it deposits minerals — especially in hard water areas. Over time, these mineral deposits clog the pad's pores, reducing the surface area available for evaporation and cutting airflow significantly.
A unit running with mineral-clogged pads can lose 30–40% of its cooling capacity without any obvious sign of malfunction. The fan still runs. Water still flows. But the output is a shadow of what it should be. Regular maintenance is how you catch this before it becomes a problem.
The Core Maintenance Tasks
Cleaning the Cooling Pads
Cooling pads should be inspected every 2–4 weeks during peak use season. If you notice reduced airflow or a musty smell, check the pads first — they're the most common culprit.
To clean the pads, remove them from the unit and rinse with a garden hose, spraying from the air-exit side toward the air-entry side to flush deposits out. For heavier buildup, soak the pads in a diluted white vinegar solution (1 part vinegar to 3 parts water) for 30–60 minutes, then rinse thoroughly.
Avoid using harsh chemicals or a pressure washer — either can damage the pad material. The goal is gentle dissolution of mineral deposits, not abrasion.
Using Maintenance Tablets
Maintenance tablets designed for evaporative coolers are one of the easiest ways to stay ahead of mineral buildup and odor. Dropped into the water tank on a regular schedule, they help break down scale before it hardens on the pads and inhibit the bacterial growth that causes musty smells. They're inexpensive relative to the cost of replacing pads and significantly extend pad life.
When to Replace the Cooling Pads
Even with regular cleaning, cooling pads have a finite lifespan. Plan on replacing them at least once per season for units in heavy daily use, or every 2–3 seasons for lighter-use applications. Signs that pads need replacing include visible deterioration or crumbling, persistent musty odor that doesn't clear after cleaning, and airflow that remains reduced even after cleaning.
Using manufacturer-matched replacement pads is worth the effort. Off-brand pads may fit the physical space but often have different porosity or thickness that reduces cooling effectiveness.
Cleaning the Water Tank
The water tank should be fully drained and cleaned at least once a month during peak season. Stagnant water breeds bacteria and algae, both of which create odor and potentially unhealthy air output. Drain the tank, scrub with a soft brush and mild cleaning solution, rinse thoroughly, and refill with fresh water.
If your unit will be idle for more than a week, drain the tank completely rather than leaving standing water inside.
Inspecting and Cleaning the Pump
The pump is what circulates water from the tank up to the distribution system that keeps the pads wet. A malfunctioning pump is often what's behind uneven pad saturation — one part of the pad is soaking wet while another section runs dry.
Check the pump monthly. Mineral deposits and debris can clog the pump intake. Most pumps on industrial evaporative coolers are easily accessible and can be rinsed clean with water. If the pump isn't moving water consistently even after cleaning, it may need replacement.
Checking the Float Valve
If your unit is connected to a direct water supply, the float valve controls the water level in the tank. A stuck or scaled float valve can cause the tank to overflow or run dry — both of which affect performance. Test it periodically by watching the water level as the tank fills. It should shut off cleanly at the correct fill level.
Managing Water Quality
Hard Water and Mineral Buildup
Hard water — water with high calcium and magnesium content — is the primary enemy of evaporative cooler pads. If your facility uses hard water, you'll need to clean pads more frequently and replace them sooner. Consider using a water softener or a sediment filter on the supply line to reduce mineral load.
Bleed-Off Systems
Some industrial evaporative coolers include a bleed-off system — a small continuous drain that removes mineral-concentrated water from the tank and replaces it with fresh water. This keeps mineral concentration lower and extends pad life. If your unit supports it, keeping the bleed-off rate at the manufacturer's recommended setting is worthwhile.
Seasonal Shutdown and Storage
When cooling season ends, a proper shutdown protects your investment. Drain the tank and all water lines completely — standing water in cold temperatures can freeze and crack components. Remove and inspect the pads: if they're in good condition, store them flat in a dry location; if they're showing significant wear, replace them now so the unit is ready to go next season.
Clean the entire unit's exterior, check all electrical connections for corrosion, and if possible, store the unit in a dry, covered space. A protective cover keeps dust out of the motor and fan assembly during off-season storage.
Maintenance Schedule Quick Reference
Weekly during heavy use: check water level, inspect for unusual noises or odors. Monthly: clean water tank, inspect pump and float valve, add maintenance tablet. Every 2–4 weeks: inspect and clean cooling pads. Start of season: replace pads if worn, check all electrical connections. End of season: full drain and clean, inspect pads, store properly.
A Little Effort Goes a Long Way
The good news about evaporative cooler maintenance is that none of it is complicated or time-consuming. Most of the tasks above take 15–20 minutes when done regularly. The alternative — waiting until performance has noticeably dropped or a component fails — is far more disruptive and expensive.
A well-maintained evaporative cooling fan doesn't just last longer. It performs better every single day of the cooling season.
