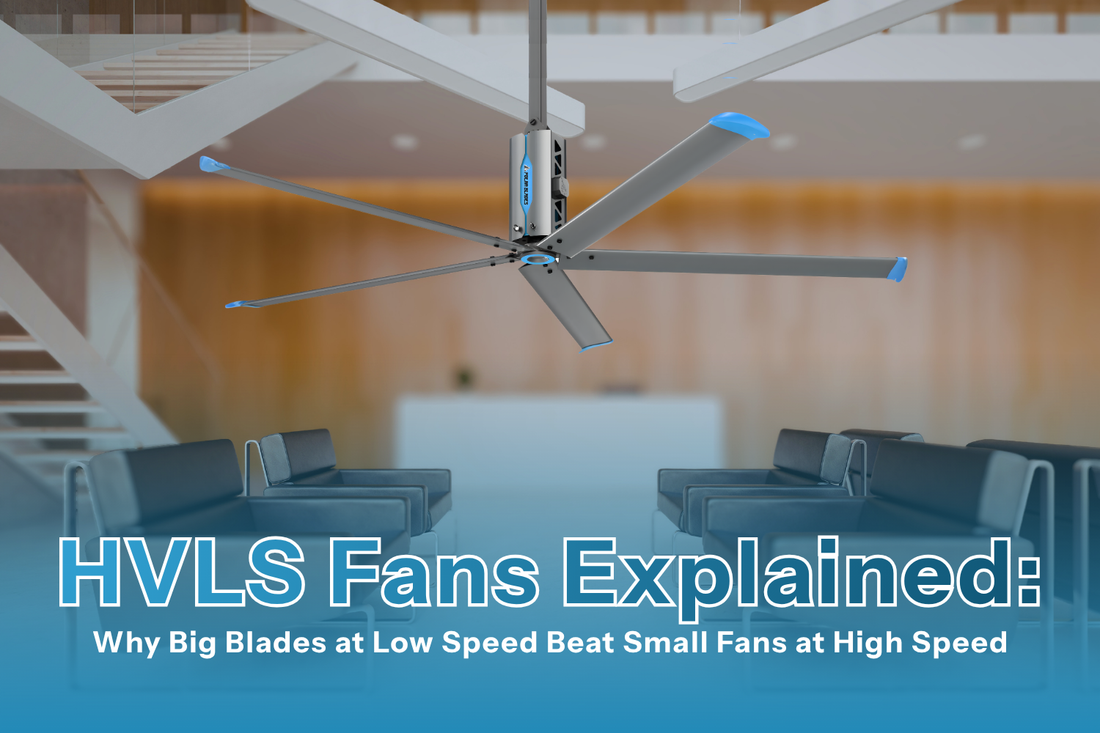

If you've ever walked into a modern warehouse, distribution center, or airport terminal and noticed a massive fan spinning slowly overhead — that's an HVLS fan. And if you've wondered how something spinning that slowly can possibly be cooling anything, you're not alone. The answer is counterintuitive but completely grounded in physics.
This article explains what HVLS fans are, how they work, and why the combination of large diameter and slow speed is actually more effective — and more efficient — than the alternative.
What HVLS Stands For
HVLS stands for High Volume, Low Speed. These are ceiling-mounted fans with blade diameters typically ranging from 7 to 24 feet, designed to move enormous amounts of air at rotation speeds between 20 and 100 RPM — a fraction of the speed of a conventional fan. Despite their slow rotation, the sheer size of the blade span allows them to displace thousands of cubic feet of air per minute.
The Physics: Why Size Beats Speed
How Air Volume Is Generated
The volume of air a fan moves is determined by the swept area of the blades and their rotational speed. A small fan with short blades has to spin very fast to move significant air. A large fan with a 20-foot diameter sweeps a massive area with every rotation — so even at very slow RPMs, it moves far more air than a small fast fan.
A 20-foot HVLS fan spinning at 50 RPM can move more than 12,000 cubic feet of air per minute. A standard 36-inch industrial drum fan at full speed moves roughly 7,000–9,000 CFM. The HVLS fan moves more air, more quietly, and uses considerably less energy per square foot of coverage.
The Column Effect
HVLS fans don't just move air horizontally — they create a vertical column of air that pushes down from the ceiling and spreads outward along the floor in all directions. This floor-level airflow reaches people where they are, and because it spreads across the entire floor radius of the fan (which can be 30–40 feet from center), a single HVLS fan can effectively cover 10,000–20,000 square feet.
Summer and Winter Benefits
Summer Cooling Effect
During summer, HVLS fans create a consistent airflow across the occupied zone. Because the breeze they create has a wind chill effect, people and animals feel 6–10°F cooler than the actual air temperature. For workers on a hot floor, that difference is the gap between comfortable and miserable — and between productive and heat-stressed.
HVLS fans also help reduce the stratification of hot and cool air in tall spaces. Without air movement, heat rises and pools near the ceiling while the floor-level air remains stagnant. HVLS fans disrupt that layering, resulting in a more even temperature throughout the space.
Winter Destratification
In winter, heat naturally rises to the ceiling — in tall warehouses, this can mean the upper 20–30 feet of space is significantly warmer than the floor level where people actually work. Running HVLS fans at low speed in reverse pushes that warm air back down to floor level without creating a wind chill effect. The result: the same heating equipment maintains comfortable floor-level temperatures at a lower cost, reducing heating bills by 20–30% in many facilities.
This year-round utility is one of the main reasons HVLS fans have become a standard feature in well-designed industrial facilities. They're not seasonal — they earn their keep 12 months a year.
HVLS Fans vs. Multiple Smaller Fans
Coverage and Uniformity
To cover 15,000 square feet with conventional industrial fans, you might need 10–15 units positioned strategically throughout the space. Even then, coverage is uneven — some areas get good airflow, others are dead zones. A single 20-foot HVLS fan covers that same area more uniformly with a single installation point.
Energy Consumption
A single HVLS fan uses approximately 1.2–2 kW at full speed. Ten conventional industrial fans running simultaneously might use 8–15 kW total. At industrial electricity rates, that difference amounts to substantial annual savings — and the HVLS installation cost is typically recovered within 2–3 years through energy savings alone.
Noise
Because HVLS fans spin slowly, they're remarkably quiet for the air volume they move. In facilities where communication, safety signals, or just employee comfort matter, this is a meaningful advantage over arrays of high-speed fans that create constant background noise.
Common Applications for HVLS Fans
Warehouses and Distribution Centers
This is the primary application for HVLS technology. Large floor areas, high ceilings, and consistent occupancy make warehouses ideal environments for HVLS fans, both for cooling workers and for the energy savings from winter destratification.
Manufacturing Facilities
Manufacturing floors benefit from the consistent airflow HVLS fans provide, particularly in areas where workers remain stationary at machine stations. The gentle, steady breeze reduces heat stress without interfering with precision work or creating drafts that affect processes.
Agricultural Buildings
Livestock facilities — dairy barns, poultry houses, horse stables — use HVLS fans to manage temperature and reduce moisture buildup. Animals, like people, are highly sensitive to heat stress, and HVLS fans provide an efficient way to maintain safe conditions across large barn footprints.
Fitness Centers and Gyms
High-ceiling fitness facilities and CrossFit gyms have adopted HVLS fans for the same reasons as industrial users: broad, even coverage and quiet operation. Athletes appreciate the consistent airflow, and facility owners appreciate the low operating costs.
What to Consider Before Installing an HVLS Fan
Ceiling Height Requirements
HVLS fans require adequate ceiling clearance. Most manufacturers recommend a minimum of 10–12 feet from the fan blade to the floor, with optimal performance at ceiling heights of 14 feet or more. Lower ceilings can cause the air column to feel too strong at floor level.
Structural Mounting
A 20-foot HVLS fan is a heavy, dynamic load. The mounting structure — ceiling joist, beam, or custom mount — needs to be rated for the fan's weight plus operational forces. This is a job for a qualified installer or engineer, not a DIY project.
Controls and Automation
Modern HVLS fans come with variable speed controls, and many can be integrated with building management systems or thermostat controls to run automatically based on temperature or occupancy. For large facilities, automated control makes a meaningful difference in both comfort and energy efficiency.
Is an HVLS Fan Right for Your Space?
If you have a space with more than 5,000 square feet of floor area and ceiling heights above 12 feet, the economics of an HVLS fan almost always make sense. The higher the ceiling and the larger the floor area, the more compelling the case.
If your space is smaller, or if you need the flexibility of a portable unit, other options — drum fans, evaporative coolers — may be more practical. But for permanent installations in large, open facilities, HVLS fans are among the most cost-effective long-term cooling investments available.
